(2-10mm)x 2100mm Cut to Length Line Machine

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description &Function

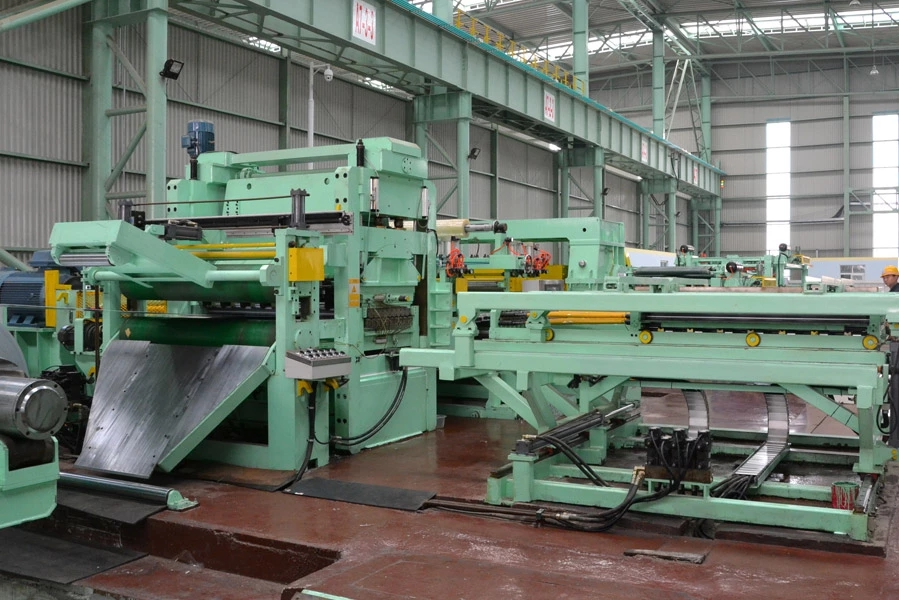

1、 The Cut To Length Machine also called cut to length line which are used for uncoiling,leveling and cutting the metal coil into the required length of flat sheet material and stacking.It suitable for processing cold rolled and hot rolled steel, coil,galvanized steel coil,silicon steel coil, stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well

2、This equipment through the procedure of uncoiling, leveling, precision gauge cutting, processing the strip steel coil into required steel pate. It mainly composed of uncoiler, pincher and leveler, gauge, cutting machine , stacker, etc, with assists of feeder, side guiding device, transition, and conveyor, etc. 3、Category According to the metal materials there are stainless steel cut to length machine,silicone steel cut to length machine,cold or hot rolled plate cut to length machine and so on. According to its electronic control mode there are pneumatic cut to length line,NC cut to length line and etc..

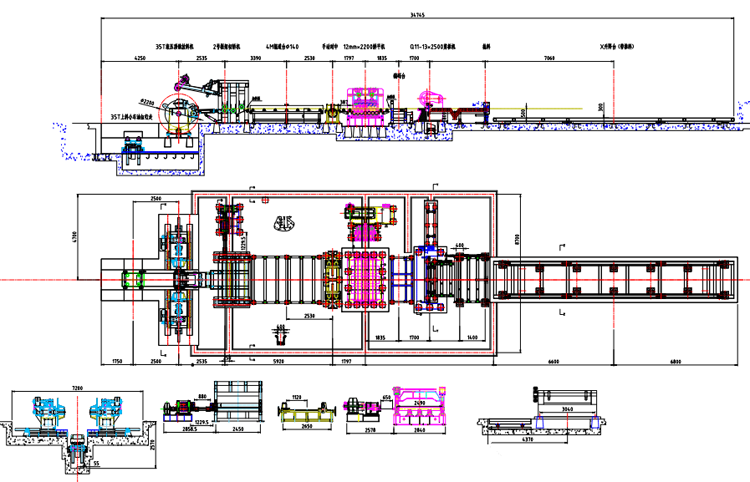

The Whole Lineflowchart

Coil loading car----Decoiler----coil head press, guide and shovel equipment----Double pinch rollers---Centre aligner----high-precision levelers( 23 rolls)---encoder ----hydraulic tracking cutting machine--pinch rolls for sheets dropping-- plates-delivering roll table----plates sending out device----plates supporting table---plates piling up device--manual packing

Machine Parameters

型号/Type	3×1600	6×2000	8×2000	10×2200	12×2200	16×2200	20×2500	25×2500
可加工板厚(mm) Thickness Range	0.3-3	1-6	2-8	2-10	3-12	4-16	6-20	8-25
可加工板宽(mm) Width Range	1600	2000	2000	2200	2200	2200	2500	2500
长度范围(mm) Cutting Length	300-4000	500-6000	600-8000	600-10000	800-12000	800-12000	800-12000	800-12000
剪切长度精度(mm) Cutting precision	±0.5	±0.5	±1	±1	±1	±1	±1	±1
矫平辊数量 Roller Numbers	15	15	13	13	11	11	9	9
辊径(mm) Roller Diameter	Ф85	Ф140	Ф155	Ф160	Ф180	Ф200	Ф230	Ф260

Basic Specification：

Raw Material: Stainless Steel304, 201, 416 and Carbon steel,Q235,Q345( HR coils)
Raw Material Thickness: 2-10mm
Raw Material Width: 800-2100mm
Raw Material Outer Diameter: φ1000-φ2100mm,
Raw Material Inner Diameter: φ550-φ760mm,
Coil Weight: 30T
Cutting Length:600-12000mm,
Cutting width Tolerance: ±01mm
Sickled bent precision:0.5mm/1000mm long
Trimming width: ³steel thickness
Leveling speed:0-40m/min
Total line power consumption:about 380kw
The whole line dimension:30mx8m
Working center height:1000mm
Labors: 2 persons
