Best Price Roof Roll Forming Machine Roofing Roll Forming Machine Tile Roll Forming Machine

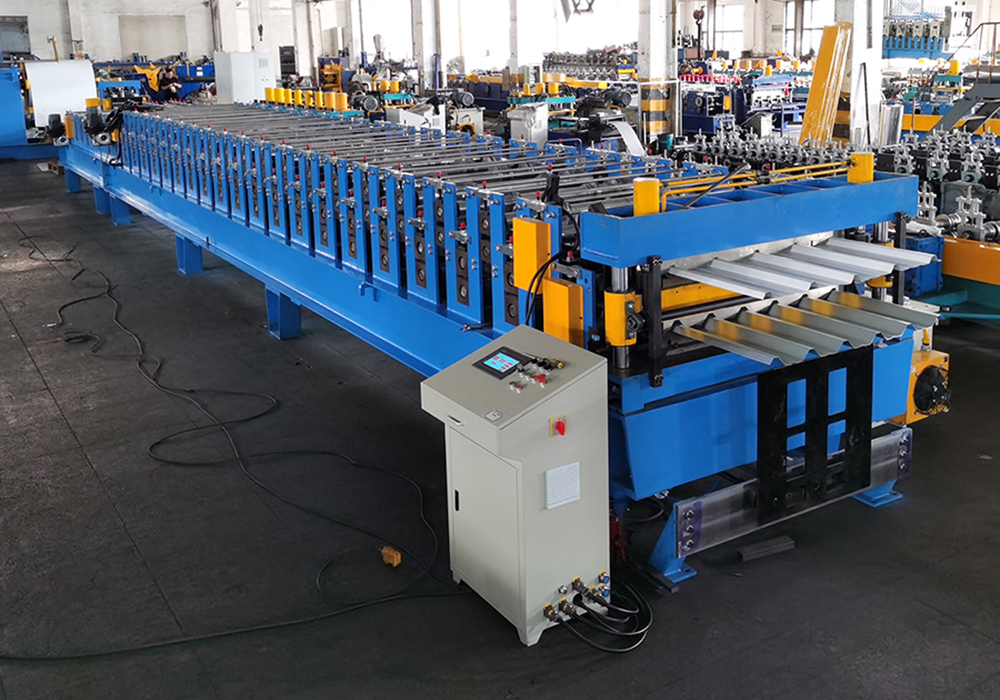

Double layer ibr roof sheet roll forming machine can produce two types of metal panels.Such as glazed tile sheet , single color sheet ,corrugated tile ,round wave sheet and others .you can choose any two of them.Thus, it can save space and raise productivity.

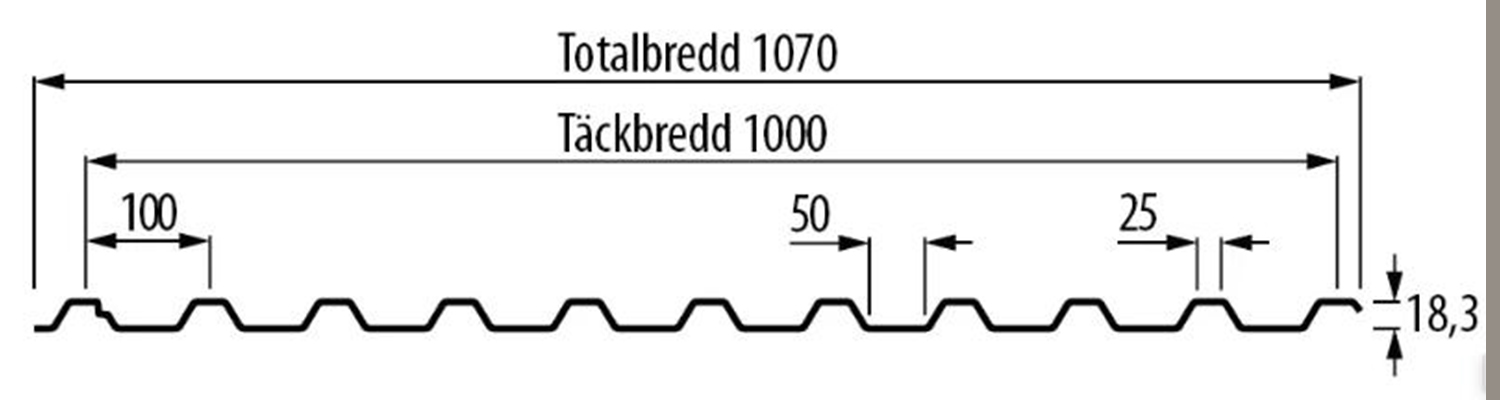

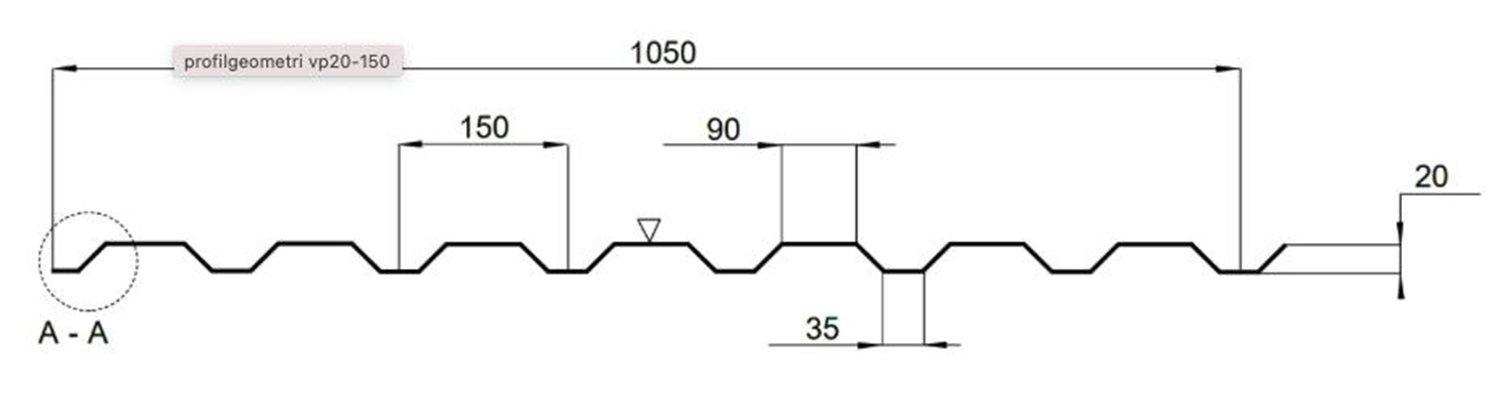

Profile Drawing
2.Roll stations: 21 stations for T18
22 stations for T20
3.single row 1.0inch chain drive
4.Diameter of shaft:￠75mm
5.Cutting system: hydraulic stop-to-cut
6.cutting Length tolerance:3±1.5mm
7.Working speed:12--20m/min(not including the cutting time)
8.Thickness: 0.3mm--0.8mm,G350Mpa-G550Mpa tensile galvanized or prepainted steel sheet.
9.Coil input width size:1250mm
10.Material of roller:45# steel ,quenched,HRC58--62,chromed on the rollers surface
11.Material of blade mould:Cr12Mov, quenched 58-62
12.Size of machine: approx 9m*1.6m*1.6m

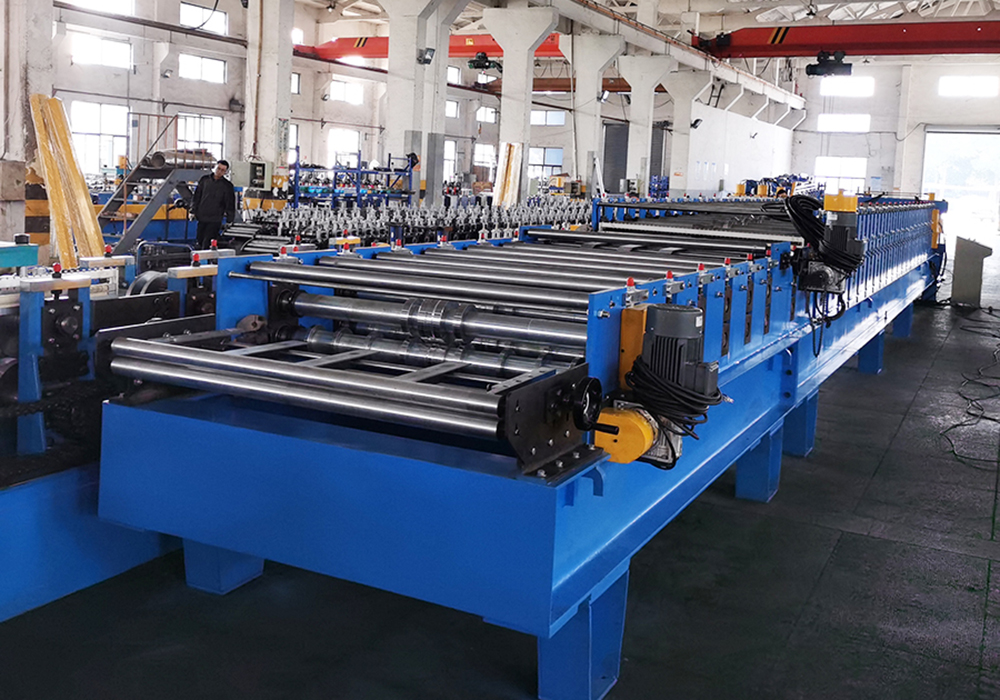

13.Machine structure:wall panel welded structure (see the picture below)
14.Hydraulic power:5.5kw
15.Hydraulic pressure :16Mpa
16.The solenoids are from in Chinese brand
17.the hydraulic pipes are from Chinese famous brand
18.way of control:PLC control,Siemens made in China
19.Yaskawa inverter ,Japanese brand,made in China
20.Touch screen made in Taiwan,MCGS brand
21.All of the contactors are Schneider brand,made in China
22.All of the switches are Omron/Koyo brand,made in China
23.Encoder measures the lengthOmron/Koyo brand
24.Electrical:380V,50Hz,3Ph
25.Air plugs installed on the PLC cabinet
Product Advantage：
1.Our products have passed strict quality
2.Competitive price
3.flexibly designed according to need
4.after-sales doubts for you
5.CE,ISO9001 certification
