Factory Price Gutter Roll Forming Machine Half Round Gutter Roll Forming Machinerain Gutter Roll Forming Machine
Wuxi Hai Roll Fone CO.,Ltd is a professional manufacturer designing and producing roll forming machines established in June 1996. . More than 400 workers provide service for you.
Products mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine, high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, downpipe machine, gutter machine, etc.

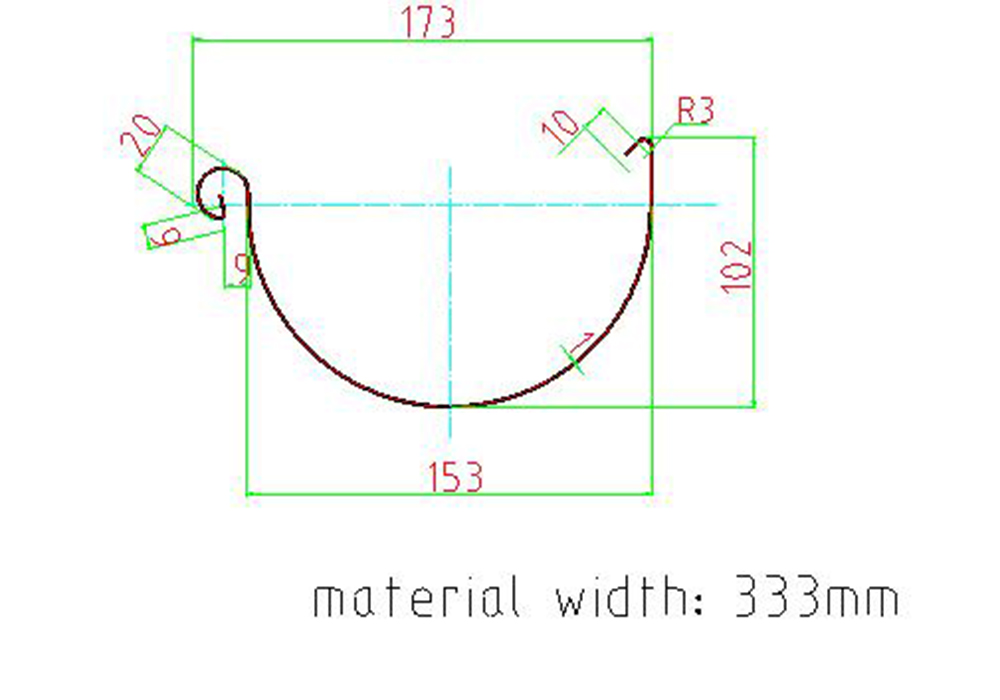

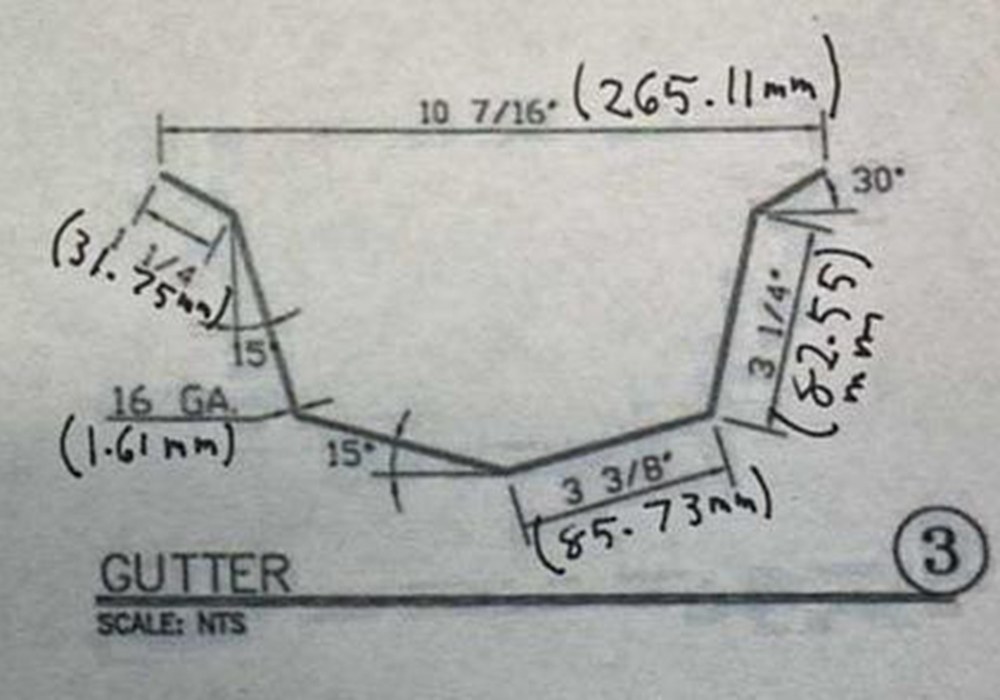

Profile Drawing
Way of decoiling:manuel decoiling, manuel inner expansion
Coil Inner-diameter: 508mm
Coil Outer-diameter: 1000mm
Range of expansion and contracting：Φ460～Φ520mm
Max loading capacity: 3Tons
Coil Width Max. 500mm

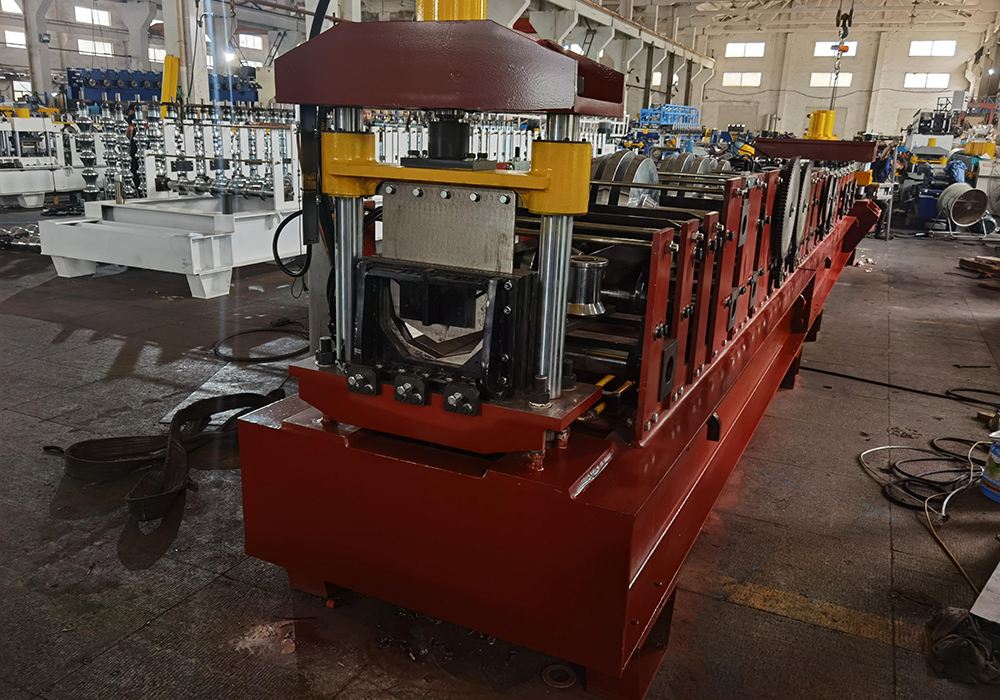

Roll forming machine
Feeding section with guide
Main power:15KW motor made in China
Driving system: double 1 inch chain drive
Roll stations: 18 stations,
Machine structure: welded panel structure
Material of roller: GCr15 HRC58-62
Diameter of shaft:￠70mm
Max Line speed of roll forming machine: 20m/min
Product Advantage：
1.Our machine can use galvanized steel sheet,colored armor plate or aluminum plate as the material plate.
2.Controlling by computer,PL display,operationis easy,running is steady and reliable,endurable,maintence-free.
3.We can make and design what kinds of roll forming machine according to the request of customers.
4. OEM / ODM ,Customers` Design ,Size,Color&Logo are accepted.
5. Prompt Delivery&Competitive Price
6. Main markets: Middle East, Turkey, East Europe, South America, Africa,South and east Asia, Russia etc.
7. After-sales service: We provide the technical support for whole life of our machines
