High Productivity Standing Seam Roll Forming Machine Steel Roll Forming Machine Metal Roll Forming Machine

Email: info@wxhrf.com

Tel: 0510-81153870

Whatsapp: +8615961895852

High Productivity Standing Seam Roll Forming Machine Steel Roll Forming Machine Metal Roll Forming Machine

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Basic Introduction

Roofing sheet standing seam profile roll forming machine has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet,selflock roof machine.The standing seam roof sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.

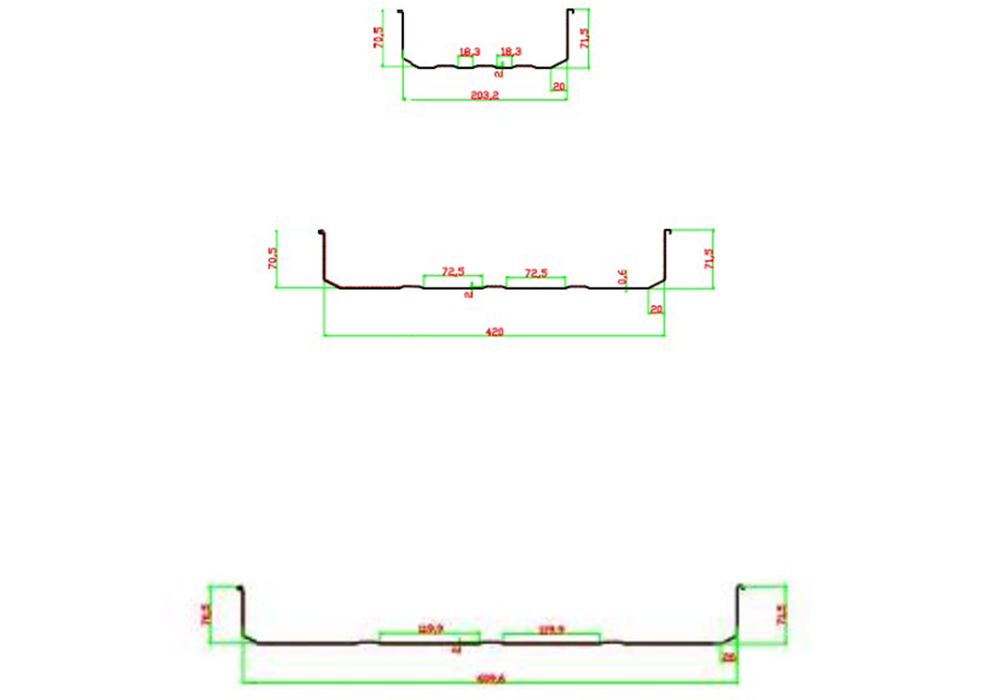

Profile Drawing

Technical Parameter

1.Main Power:5.5KW motor made inChina
2.Roll Stations:12 stations
3.Single Row 1.0inch chaindrive
4.Diameter ofShaft:￠70mm
5.Cutting System: hydraulicstop-to-cut
6.Cutting LengthTolerance:3±1.5mm
7.Working Speed:0-15m/min
8.Thickness: 0.4mm--0.9mm,G350Mpa tensile galvanized or prepainted steel sheet oralumzinc
9.Material of the Rollers:Cr12Mov,HRC58--62
10.Material of Blade Mould:Cr12Mov quenched58-62
11.Size of Machine: approx5.5m*1.0m*1.4m
12.Machine Structure:wall panel weldedstructure
13.HydraulicPower:4kw
14.HydraulicPressure:12Mpa
15.The Solenoids are Yuke from Japan
16.The hydraulic pipes are from Chinese famousbrand
17.Way of Control:PLC control Siemens from German brand
18.Yaskawa inverter fromJapan
19.Touch screen ,MSCG fromChina
20.All of the contactors are Schneider brand
21.All of the switches are Omron brand
22.Omron encoder or the famous brands as replacement measures the length,original brand
23.Manual change the spacers to produce the 3 sizes
24.Manual change the cutting blade
25.Electrical:380V,50Hz,3Ph
26.We put the whole machine into 1x20ft containerand inside the container
27.We will copy the Kundson KR 18 machine to shorten the machine within 6m length so that the operator can put the machine inside 1x20ft container

Product Advantage：

1.Our products have passed strict quality

2.Competitive price

3.flexibly designed according to need

4.after-sales doubts for you

5.CE,ISO9001 certification

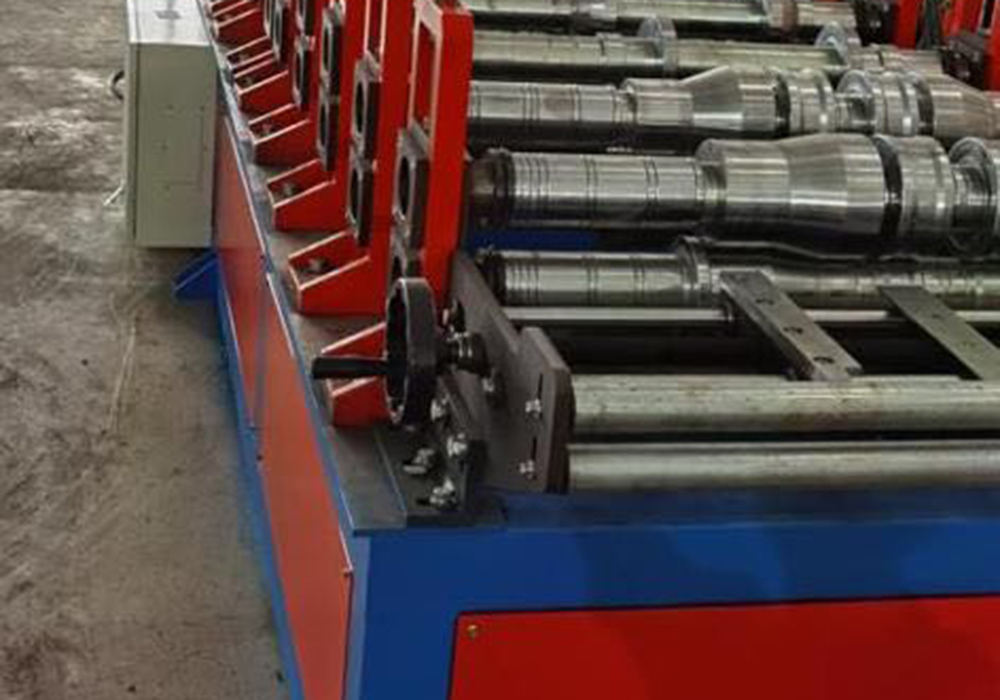

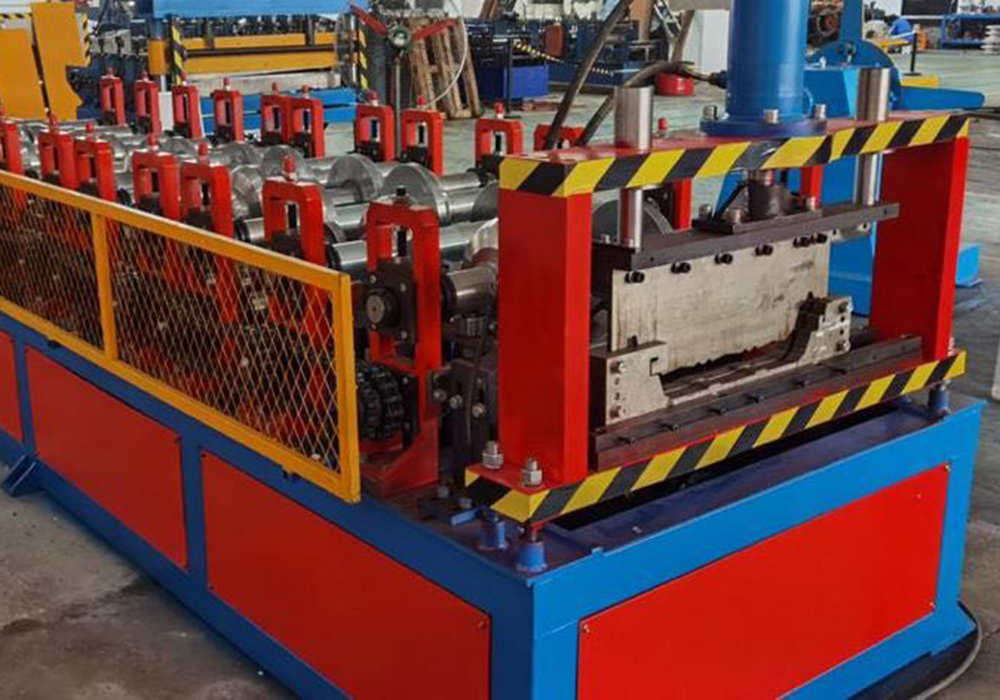

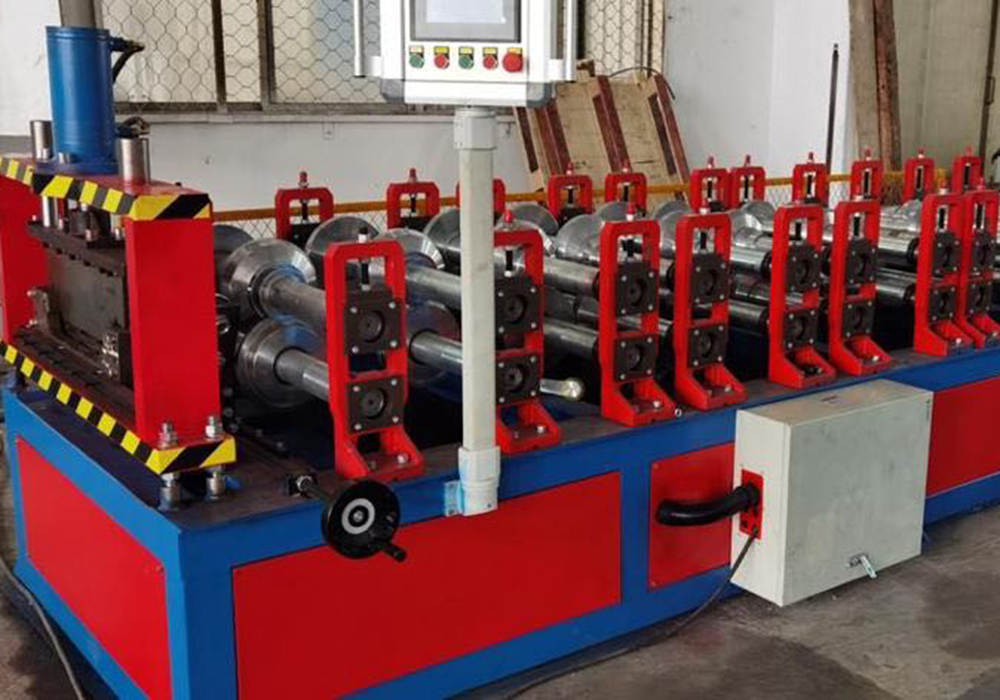

Detail Images
