NO.

Name

Quant.

Remark

1

5T hydraulic Motoized decoiler

1 set

1)Max 5T
2)Max coil:500mm
3)Motor:5.5kw made in China

2

Leveling machine

1 set

1) 7 rolls leveling( top 3 rolls and bottom 4 rolls)
2)Rolls material:40Cr
3)Leveling speed:max 20m/min
4)5.5kwdriving-motor,speed adjustable

3

Speed control sensor

1 set

It can make the punching and forming speed simutaneous

4

SRF300B servo motor Feeder

1 set

1)Feeding speed:max 20m/min
2)Mitsubishi servo-feeder system and PLC,made in Japan
3) 70 mm feeder rolls

5

Punching press

1 set

1)Model:JF21-80
2)Motor:11KW
3)Slide stroke:max 45 times /min

6

Punching mould

1 set

1)Mould material Cr12Mov

7

Main forming
Machine unit

1 set

1)20 forming stands
2) Cast iron stands
3)Gearbox drive
4) power:45kw

8

Turkish head

1 set

It can make the product straight

8

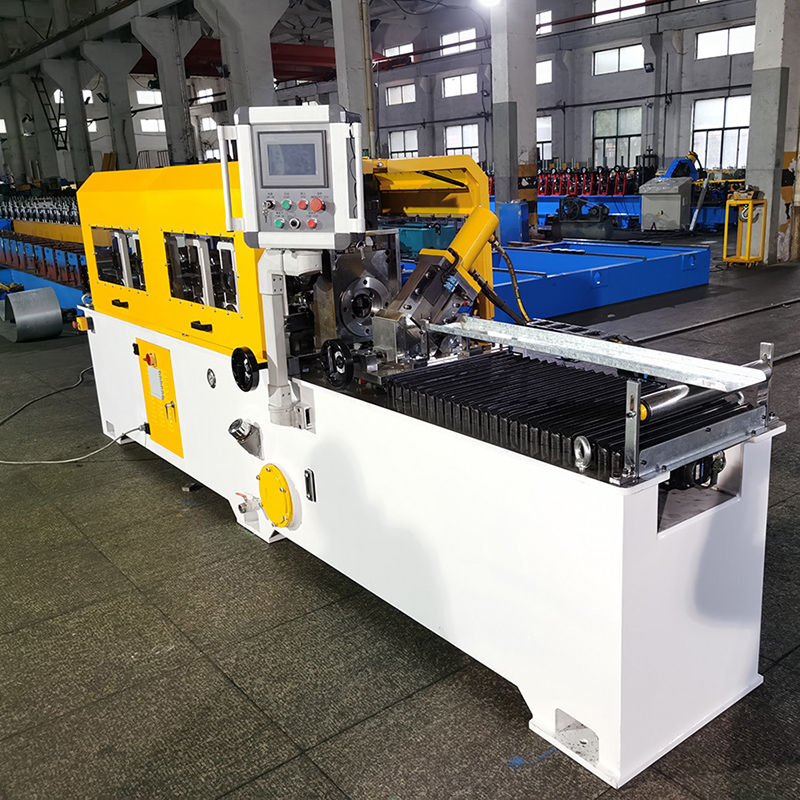

Flying shear

1 set

1)Yaskawa servo-motor control with ball screw
2)Servo-motor power 3 kw

9

Cutting blade

10 sets

Cr12

10

motorized table

1 set

1) Length :6m
2) Pneumatic control

11

Electric panel

1 set

1)PLC control system,Panasonic/
2)Yaskawa inverter
3)Omron encoder

12

Cooling&lubrication system

--

---
