Solar Strut Forming Machine

Email: info@wxhrf.com

Tel: 0510-81153870

Whatsapp: +8615961895852

Solar Strut Forming Machine

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

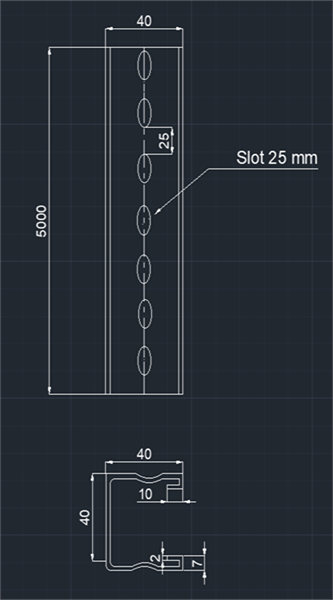

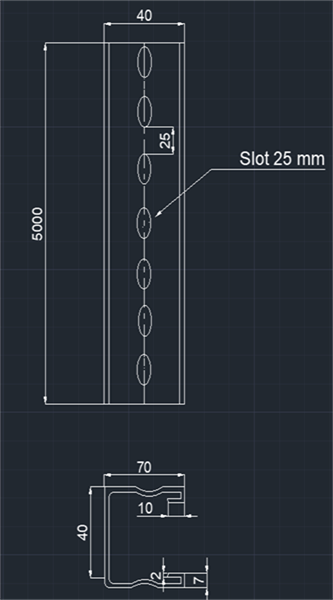

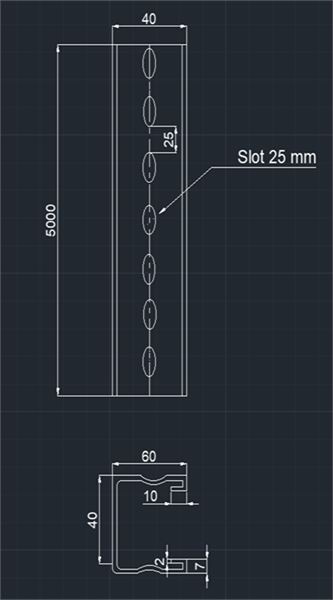

Profile Drawing

Product parameter

No	ITEM		PARAMETER	Remark
1	Suitable material	Type	Cold rolled steel coil Galvanized steel coil
		Thickness(mm)x coil width	0.6mm--1.2mmx1220mm
		Yield stress( Mpa)	G350Mpa
2	Forming speed(m/min)		18-20	Without cutting time
3	Forming station		24
4	Main machine power(kw)		22 KW	Motor made in china
5	Hydraulic station power(kw)		5.5kw	made in china
6	Power for 5T hydraulic decoiler(5.5kw)+hydraulic station 3kw		8.5KW	Motor made in china
7	Total power(kw)		About 36 kw
8	Power supply requirement		440V,60Hz,3Ph
9	Machine dimension(LxWxH)		About 13mmx1.7mmx1.4mm
10	Machine color		Green with Yellow color combination

Process flow

5T Coil car-5T hydraulic decoiler→Guiding→Roll forming→hydraulic cutting→Outables
