NO

ITEM

PARAMETER

REMARK

1.

Suitable material

cold rolled steel coil,galvanized steel G550Mpa

. 2

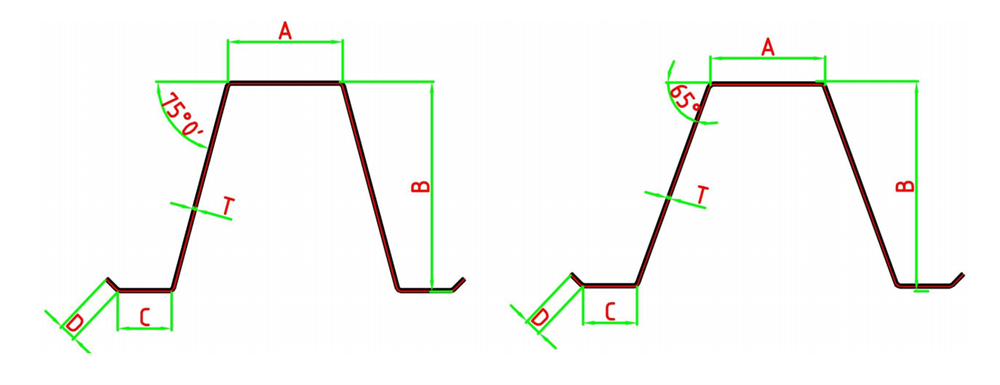

Finished purlin demension

A: 30 to 90mm; B: 40 to 150mm; C: 15 to 40mm; D:5 to 12mm; Thickness:
0.7 to 1.6mm; Angle: 65° to 90°

3.

Roll Forming structure

Casting irons stands structure with 20 forming stands + series of
vertical rollers

Casting stands

4.

Main forming machine motor power(kw)

22kw

Siemens motor
made in china

5.

9 rolls Leveling motor( 4+5 rolls)

5.5kw

motor,made in
china

6.

Hydraulic station power(kw) for main forming machine

7.5kw

Motor made in china

7.

Motors for the height
adjustment

1.5kw( 2-0.75kw)

Motor made in
china

8

Motor for purlin width
adjustment

1-1.5kw

Motor made in
china

9.

Hydraulic station ( 2 in 1)

1.5 kw

motor,made in
china

10.

Servo-feeder motor for punching

1.8 kw

Yaskawa brand

11.

Servo-feeder motor for
moveable cutting

2.9 kw

Yaskawa brand

12

Total power(kw)

About 67kw

13

Power supply requirement

380V,50Hz,3Ph

14

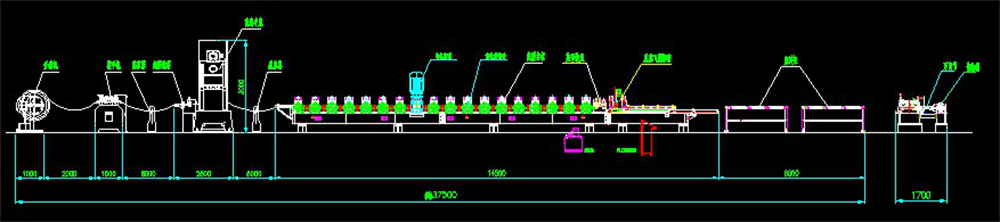

Machine dimension(LxWxH,m)

31mx2.5mx1.6m

15

Machine color

Blue with yellow color combination
