Aluminum Steel Slitting Machine

Email: info@wxhrf.com

Tel: 0510-81153870

Whatsapp: +8615961895852

Aluminum Steel Slitting Machine

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description &Function

The serial lines are used for different sizes coils with different thickness to be slit into special strips as requirements .These products are for roll mill ,HF tube mill,

cold forming machines ,punching &press machines etc. Raw material is CR material ,HR material , silicon steel, S.S steel ,Color steel, AL ,PPGI ….;

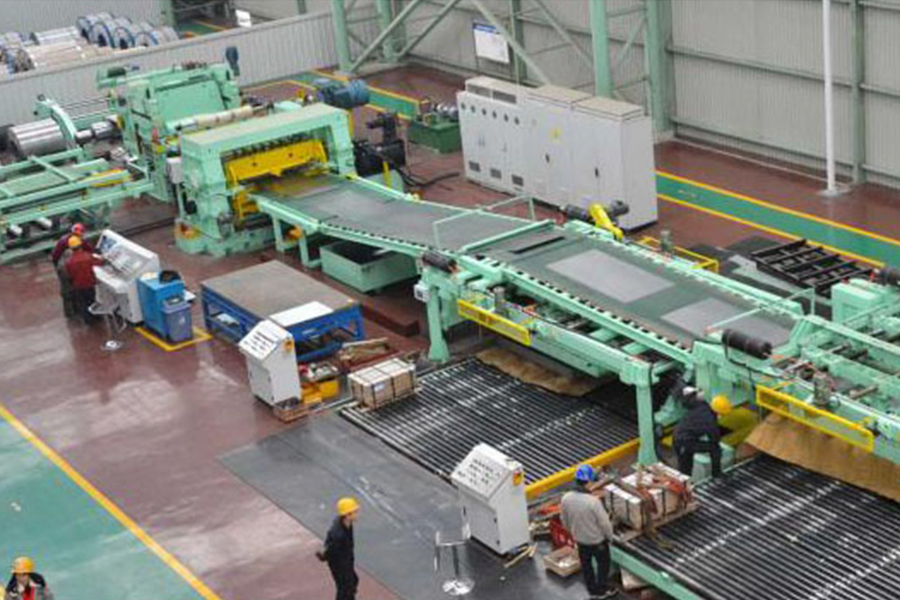

Composed of coil car-un-coiler – guiding &pinch device –slitter ,side-guiding device –looping –tensioner –scrap –re-coiler –recoil car etc .

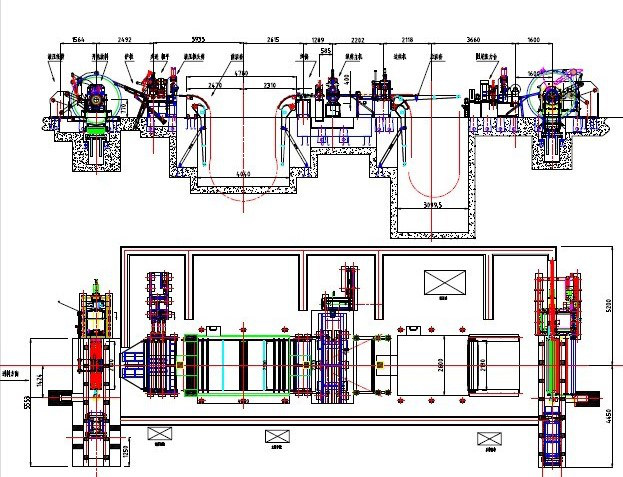

The Whole Lineflowchart

Coil loading car----Decoiler----loop pit 1-center aligner-----slitting machine--waste scrap winder- loop pit 2--pre-separator--tensioner---pressing separator--recoiler--manual packing-Unloading coil car

Shearing Data

Item	material thickness/mm	Material width	speed/mpm
1	0.2-2	400-2000	0-50-80-100-150
2	0.3-3	400-2000	0-50-80-100-120
3	0.4-4	500-2500	0-50-80-100-120
4	0.5-5	500-2500	0-50-80-100-120
5	1.0-6	500-2500	0-50-80-100
6	2.0-8	500-2500	0-30-50
7	3.0-10	800-2500	0-30-50
8	4.0-12	800-2500	0-30-50
9	8-16	800-2500	0-30-50
10	6.0-20	800-2500	0-30

Components of the Whole Line

Project		Parameter
Specification	Material	Aluminum coils
	Thickness	Tensile Strength sb≤250MPa SS ≤ 260MPa
	Width	500-1500mm
	O.D	φ800-1800mm
	I.D	Φ450-520mm
Slitting accuracy	Weight	10 T
	Width tolerance:	0.03mm
	Straightness tolerance	≤0.5mm/m
	Burr	Shaft run out machining precision could control the burr in 0.01-0.02mm if the blade could be maintain in good condition.
Way of cutting		Feed cutting
Slitting strips		0.2-1.5mm	25 strips
		1.51mm-2.5m	15 strips
Strip width		Min 25mm
Recoiler diameter		Φ508mm
Speed		0-150M/min
Operation height		1000mm
