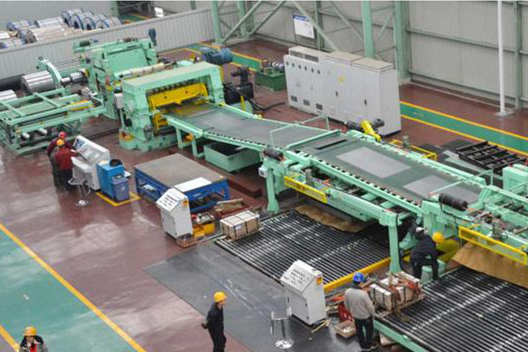

The serial lines are used for different sizes coils with different thickness to be slit into special strips as requirements .These products are for roll mill ,HF tube mill,

cold forming machines ,punching &press machines  etc. Raw material is CR material ,HR material , silicon steel, S.S steel ,Color steel, AL ,PPGI ….;

Composed of coil car-un-coiler – guiding &pinch device –slitter ,side-guiding device –looping –tensioner –scrap –re-coiler –recoil car etc .

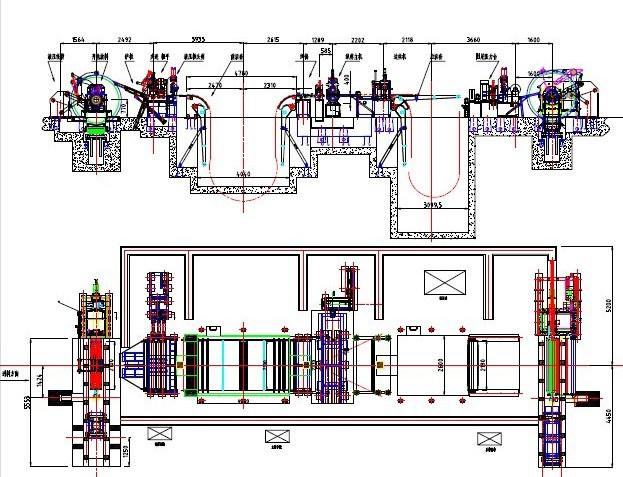

Coil loading car----Decoiler----loop pit 1-center aligner-----slitting machine--waste scrap winder- loop pit 2--pre-separator--tensioner---pressing separator--recoiler--manual packing-Unloading coil car

1.Steel coil material:common carbon steel,galvanized steel or pre-painted steel

2. Coil thickness:0.3mm--3mm

3. coil diameter:max 2100mm

4 .Coil width500mm---1600mm

5 Coil inner diameter:≥508

6.Coil weight:max 20T

1 The Material of available coils: apply for carbon steel ,cold rolled or hot rolled steel ,galvanized steel coil

2Thickness of the coils: 0.3—3mm;

3Width of the slitting coils:max 1600mm

4.Precision of slitting width tolerance: ±0.03mm

5.Slitting speed: 0—80m/min(adjustable)

6.Loading capacity of uncoiler machine:20T

7.Coil Inner.Diameter: 460mm-610mm-760mm

8.Coil Outer.Diameter: max 2100mm

9.Slitting motor power:75kw DC motor

10.Recoiler motor power:90kw DC  motor

11.Slitting blades:D205mmxd305mmxT15

12.material of the slitting blades:Cr12Mov(SKD-11),Hardness of blade: HRC58°—60°

13.Min slitting width : ≥30mm

14.Slitting blade quantity: 22 pcs

15.Recoiler I.D: ф508mm

16.Power supply: 380V 50Hz,3Ph or 440V,60Hz,3ph

17.Total dimension:25mx6mx2m

18.Total consumption:200kw
