1.What's the slitting machine?

Slitting machine is also known as slitting line, is a metal slitting equipment, According to customer requirements, the deferent material coil will be lengthwise cut into a number of required specifications strip.

2.What’s the main function?

Slitting machine is suitable for longitudinal shearing of metal strip and rewinding narrow strip after cutting. The smaller metal strips are recoiled at the end of the slitting machine by which  these smaller strips are used necessarily for the next process usage in the professional field of making transformers,motors making industry,tube/pipe welding mill industry,Cold roll forming  industry, ceiling drywall industry  and other high-precison equipment making and metal strips making industries.

3.What’s the classification?

According to the material slitting thickness there are thin plate or board slitting machine,media-thickness plate or board slitting machine and thick plate or board slitting machine. According to the metal materials there are copper strips slitting machine,stainless steel slitting machine,cold or hot rolled plate slitting machine,silicone steel slitting machine.

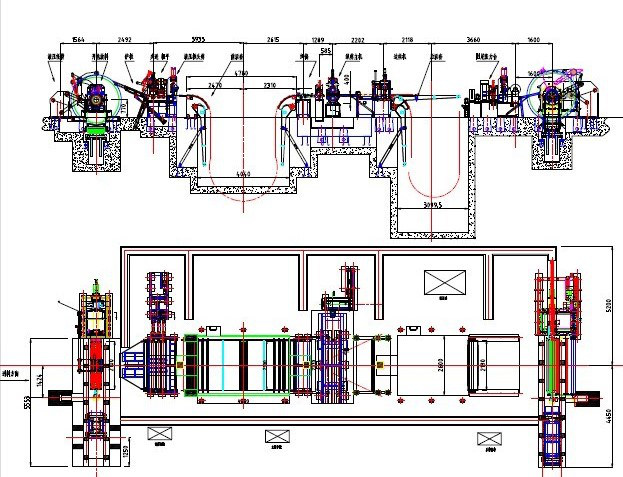

 Coil loading car----Decoiler----loop pit 1-center aligner-----slitting machine--waste scrap winder- loop pit 2--pre-separator--tensioner---pressing separator--recoiler--manual packing-Unloading coil car

1. Thickness of the coils: 2—6mm;

2. Width of the slitting coils:500-1300mm

3. Precision of slitting width tolerance: ±0.03mm

4. Slitting speed: 0—80m/min(adjustable)

5. Coil Inner.Diameter: 460mm-610mm-760mm

6. Coil Outer.Diameter: max 2100mm

7. Slitting motor power:132kw DC motor

8. Recoiler motor power:160kw DC  motor

9. Min slitting width : ≥30mm

10. Slitting blade quantity: 22 pcs
