Cross beam shelf structure:

A, column: crossbeam shelf (cargo position shelf) is composed of two columns, transverse brace and oblique brace connected by nylon self-locking bolt. The combined structure effectively prevents the shelf instability after bolt loosening. There are double row diamond holes on the column, and the hole pitch is 75mm or 50mm, so the beam can be freely adjusted up and down on the column by 75mm or 50mm. The section of the column is composed of 11 times 13 faces, with large inertia distance, strong bearing capacity and strong impact resistance. The cross beam shelf column adopts automatic punching and then cold bending forming technology, which avoids the possible exit of the column due to the stress concentration of the column. At present, the crack fails. In order to prevent the collision of forklift, it is generally equipped with column protection.

B, crossbeam: the crossbeam shelf (freight shelf) is welded together by two column cards and crossbeam poles. The crossbeam is welded by two special type welding beams, which thickens the thickness of the upper and lower parts of the crossbeam. According to the design theory of steel structure, this structure makes full use of the load resistance capacity of the material, and has the characteristics of light weight, strong bearing capacity and low cost. When the beam is connected to the column, it is equipped with a specially designed safety pin with ear piece, which can not be easily pulled out, which can ensure that the beam will not fall off after the impact of external force. Heavy shelf is also called bracket. Disc shelf has the characteristics of heavy bearing, wide range of high adaptability, mechanical access, high selection efficiency and so on, but the space utilization rate is general. L can store a wide range of items, with pallets and accessories, can solve the access problem of most materia.This equipment can be used in large shopping malls, supermarkets, as well as factory warehouses.

Profile Drawing

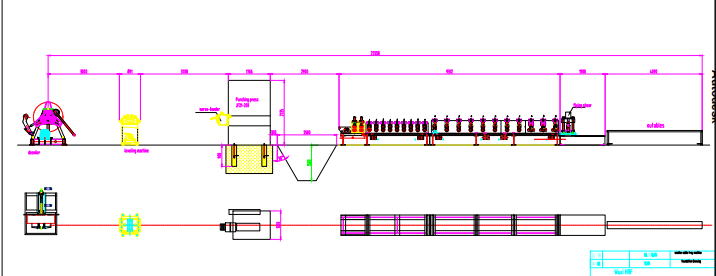

The Whole Lineflowchart

5T manual decoiler--ribs pressing –-lateral holes punching --corner cut(42mm)--corner cut ( 52mm)--logo stamping ------Roll Forming---hydraulic cutting&bending combination mould---Output tables

Main Technical Parameters

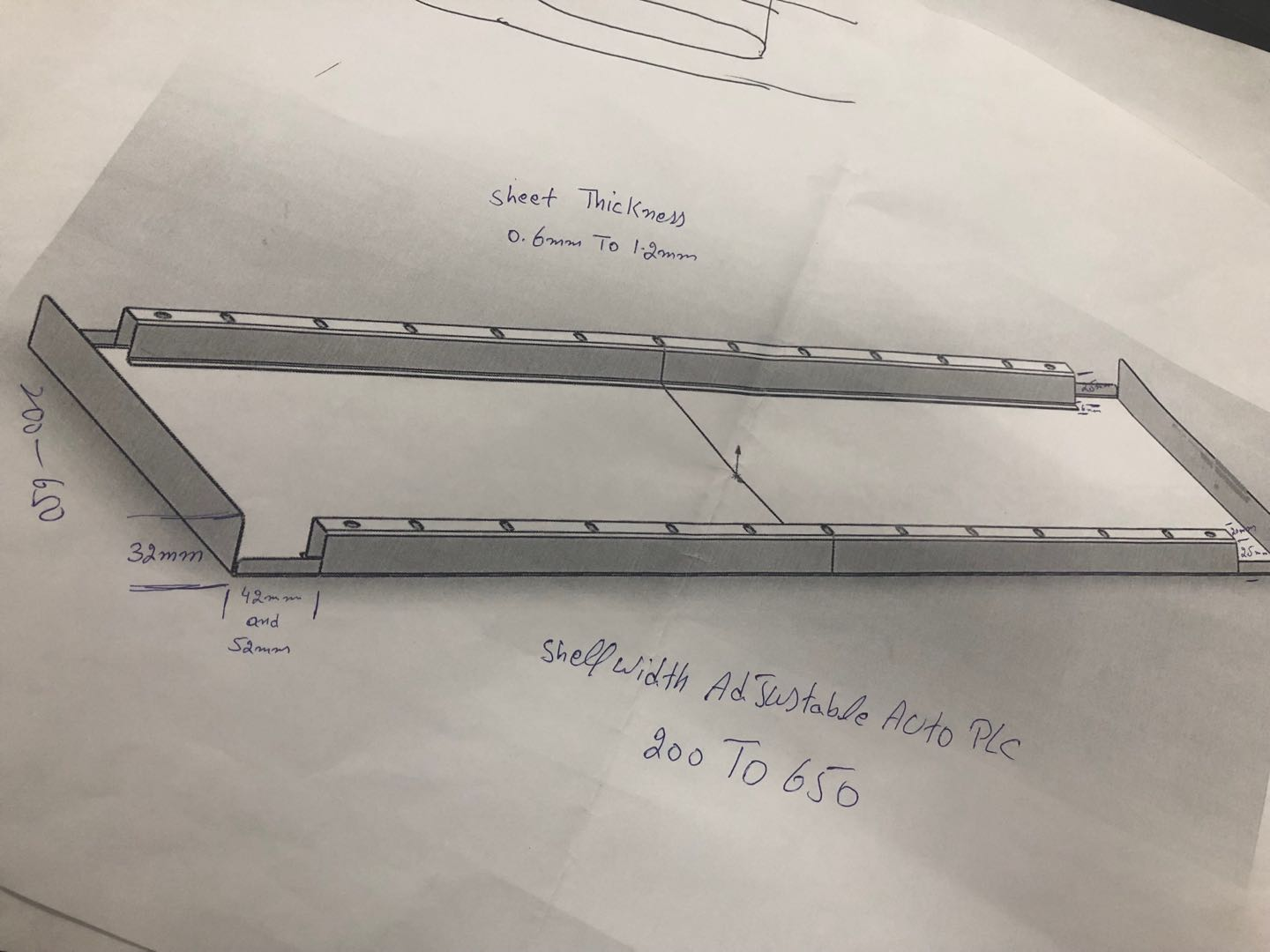

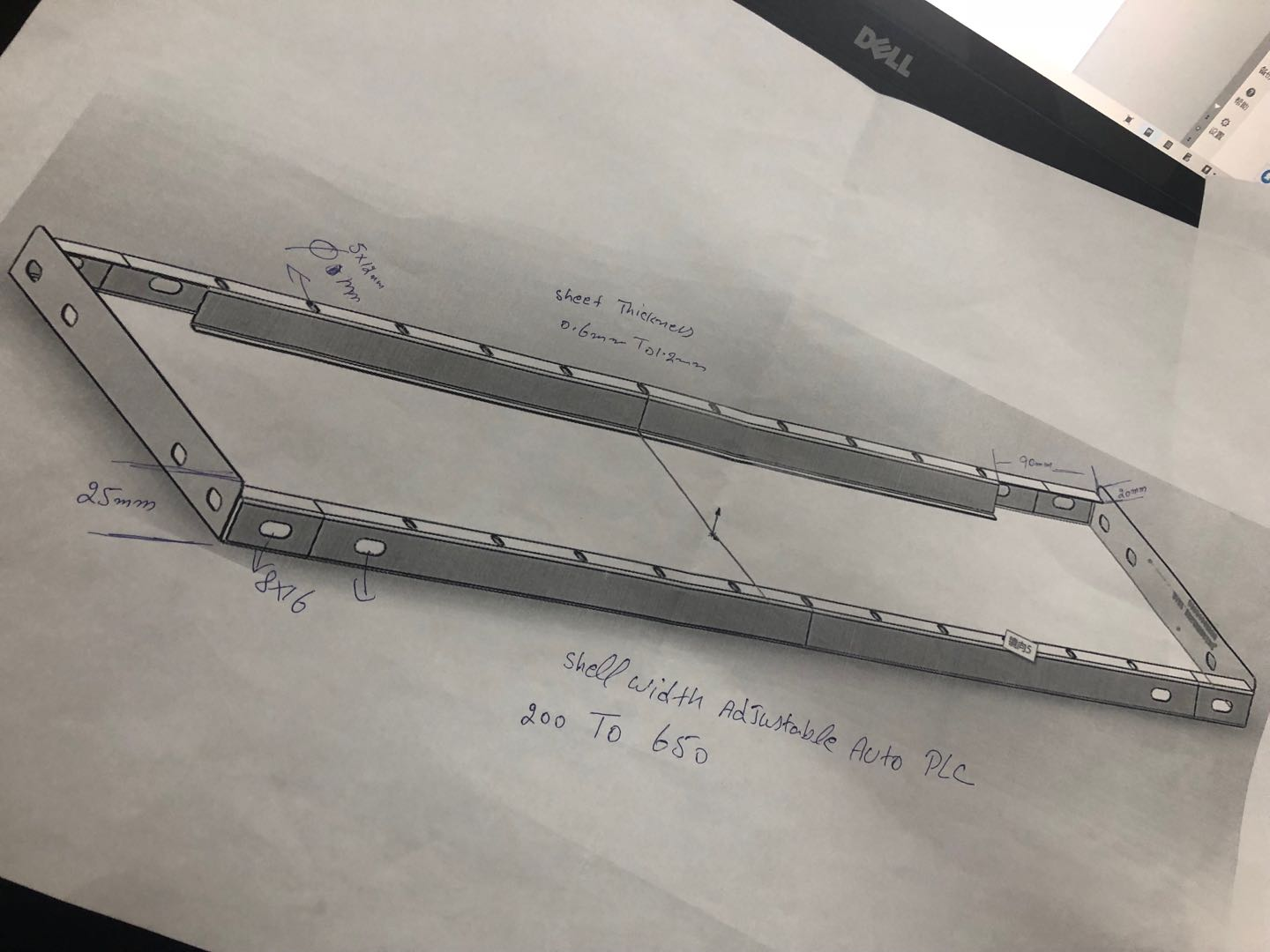

Finished products:box panel with ribs in the middle

  1. Raw material request:G350Mpa cold steel or galvanized steel
  2. Material thickness:0.4mm-1.2mm
  3. Whole line working speed:3-5m/min
Whole Line Components List

1. NO.

2. Name

3. QTY

4. Remark

5. 1

6. 5Tmanual decoiler

7. 1 set

8. Max 5T

9. Max coil:800mm

10. Manual expansion and manual decoiling

11.

12. 2

13. Ribs pressing

14. 1

15. 1;Motor:5.5kw

16. Hydraulic control the ribs position

17. Hydraulic motor:5.5kw

18. 4

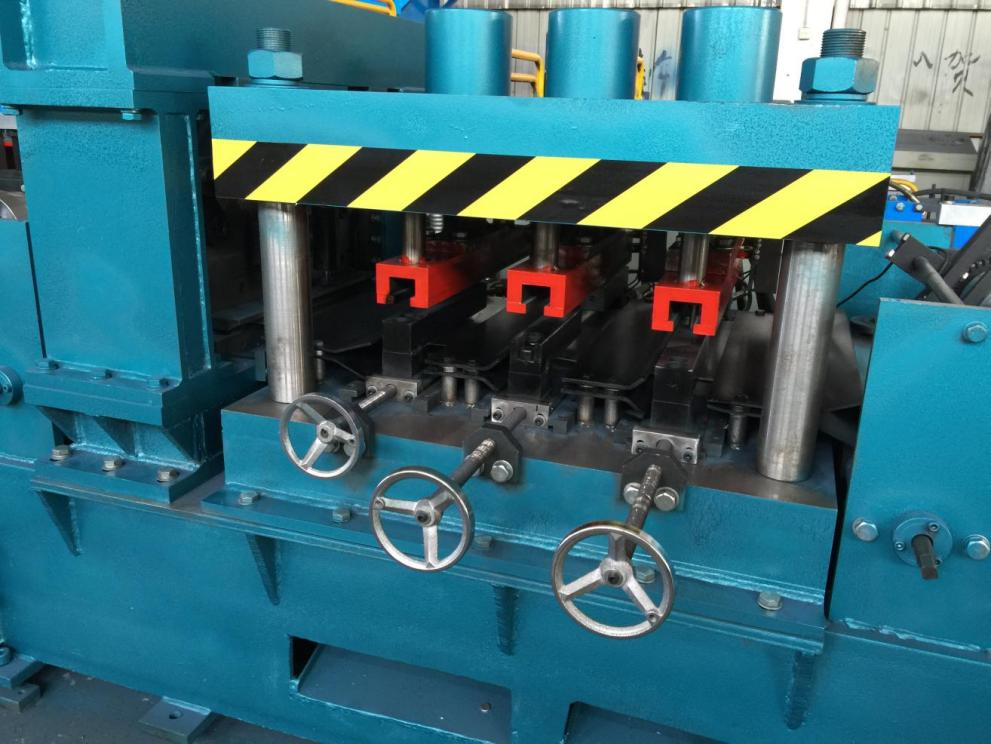

19. holes Punching & corner cut

20. 1 set

21. We use hydraulic punching machine

22. Corner cut mould:2 sets( 42mm and 52mm including vertical connection hole)

23. Corner cut 90mm : 1 set

24. Lateral holes punching mould: 1 set

25. Logo stamping mould: 1 set

26. 6

27. Roll forming Machine

28. 1 set

29. 1)wall panel structure

30. 2) 24 forming stations

31. 3)15KW motor made in China

32.

33.

34. 7

35. Hydraulic Cutting&bending mould combination

36. 1 set

37. Cutting power:7.5kw

38. Mould material:Cr12.HRC58-62

39. 8

40. Run-out table

41. 2pcs

42. 1)Steel frame with Rollers

43. 9

44. Electric control panel

45. 1 set

46. PLC control system ,Siemens from German brand

47. Yaskawa inverter from Japan

48. 10

49. Hydraulic system

50. 1 set

51. Solenoid is made in China
