NO.

Name

QTY

Remark

1

5T hydraulic decoiler

1 set

Max 5T
Max coil:800mm
Hydraulic expansion and motorizied decoiling

2

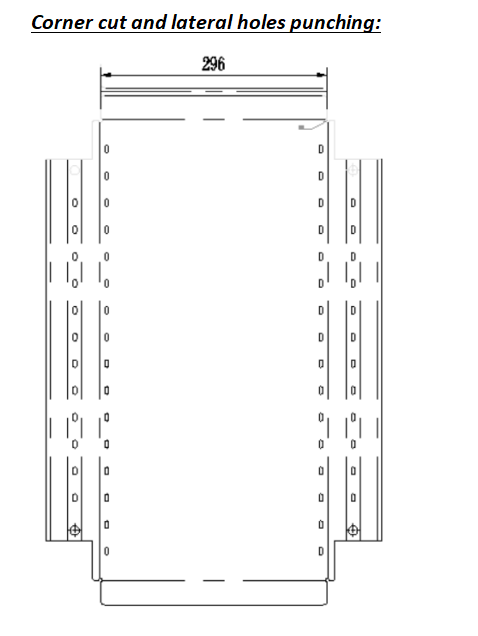

Holes Punching & corner cut

4 sets

We use hydraulic punching machine
Corner cut mould:2 sets ( left and right side can be adjustable manually)
Lateral holes punching mould: 1 set( position can be adjustable manually)

3

Logo stamping

1 set

Stamping mould:1 set

4

Roll forming Machine

1 set

wall panel catilever structure
24 forming stations
15KW motor made in China

5

Hydraulic Cutting&bending mould combination

1 set

Cutting power:7.5kw
Mould material:Cr12.HRC58-62

6

Run-out table

2pcs

Steel frame with Rollers

7

Electric control panel

1 set

PLC control system ,Siemens from German brand
Yaskawa inverter from Japan

8

Hydraulic system

1 set

Solenoid is made in China
