Cross beam shelf structure:
A, column: crossbeam shelf (cargo position shelf) is composed of two columns, transverse brace and oblique brace connected by nylon self-locking bolt. The combined structure effectively prevents the shelf instability after bolt loosening. There are double row diamond holes on the column, and the hole pitch is 75mm or 50mm, so the beam can be freely adjusted up and down on the column by 75mm or 50mm. The section of the column is composed of 11 times 13 faces, with large inertia distance, strong bearing capacity and strong impact resistance. The cross beam shelf column adopts automatic punching and then cold bending forming technology, which avoids the possible exit of the column due to the stress concentration of the column. At present, the crack fails. In order to prevent the collision of forklift, it is generally equipped with column protection.
B, crossbeam: the crossbeam shelf (freight shelf) is welded together by two column cards and crossbeam poles. The crossbeam is welded by two special type welding beams, which thickens the thickness of the upper and lower parts of the crossbeam. According to the design theory of steel structure, this structure makes full use of the load resistance capacity of the material, and has the characteristics of light weight, strong bearing capacity and low cost. When the beam is connected to the column, it is equipped with a specially designed safety pin with ear piece, which can not be easily pulled out, which can ensure that the beam will not fall off after the impact of external force. Heavy shelf is also called bracket. Disc shelf has the characteristics of heavy bearing, wide range of high adaptability, mechanical access, high selection efficiency and so on, but the space utilization rate is general. L can store a wide range of items, with pallets and accessories, can solve the access problem of most materia.This equipment can be used in large shopping malls, supermarkets, as well as factory warehouses.
![]() |
|
![]() |

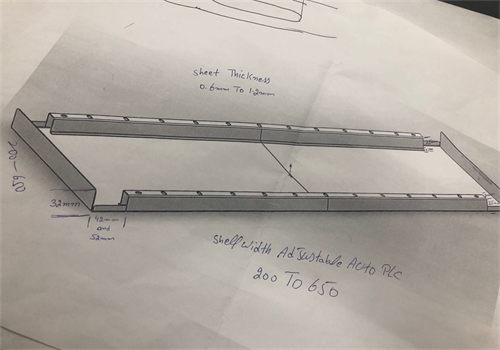

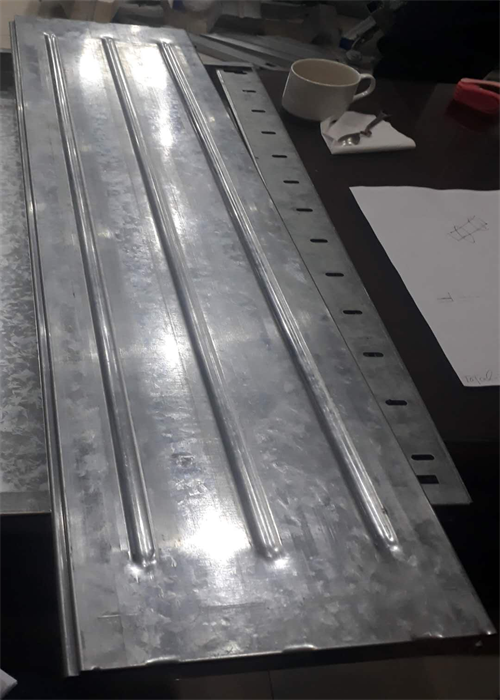

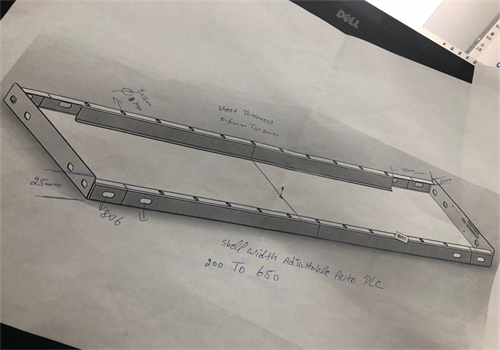

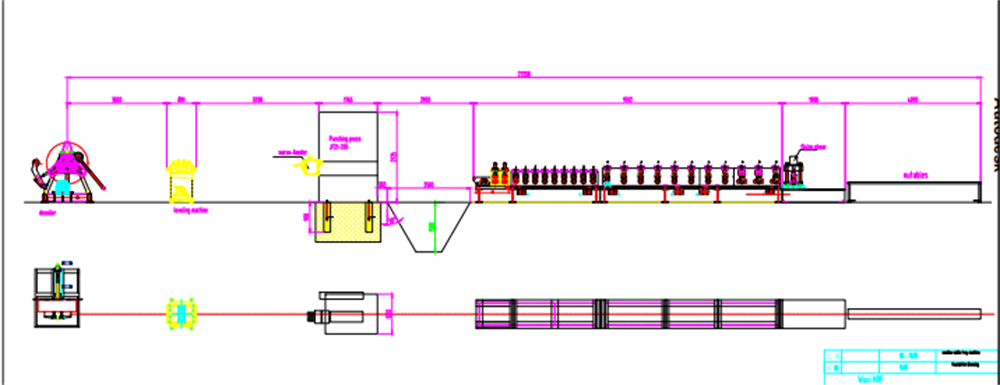

Finished products:box panel with ribs in the middle
1. NO. |
2. Name |
3. QTY |
4. Remark |
5. 1 |
6. 5Tmanual decoiler |
7. 1 set |
8. Max 5T 9. Max coil:800mm 10. Manual expansion and manual decoiling 11. |
12. 2 |
13. Ribs pressing |
14. 1 |
15. 1;Motor:5.5kw 16. Hydraulic control the ribs position 17. Hydraulic motor:5.5kw |
18. 4 |
19. holes Punching & corner cut |
20. 1 set |
21. We use hydraulic punching machine 22. Corner cut mould:2 sets( 42mm and 52mm including vertical connection hole) 23. Corner cut 90mm : 1 set 24. Lateral holes punching mould: 1 set 25. Logo stamping mould: 1 set |
26. 6 |
27. Roll forming Machine |
28. 1 set |
29. 1)wall panel structure 30. 2) 24 forming stations 31. 3)15KW motor made in China 32. 33. |
34. 7 |
35. Hydraulic Cutting&bending mould combination |
36. 1 set |
37. Cutting power:7.5kw 38. Mould material:Cr12.HRC58-62 |
39. 8 |
40. Run-out table |
41. 2pcs |
42. 1)Steel frame with Rollers |
43. 9 |
44. Electric control panel |
45. 1 set |
46. PLC control system ,Siemens from German brand 47. Yaskawa inverter from Japan |
48. 10 |
49. Hydraulic system |
50. 1 set |
51. Solenoid is made in China |
Hydraulic punching press machine and punching moulds |
|
|

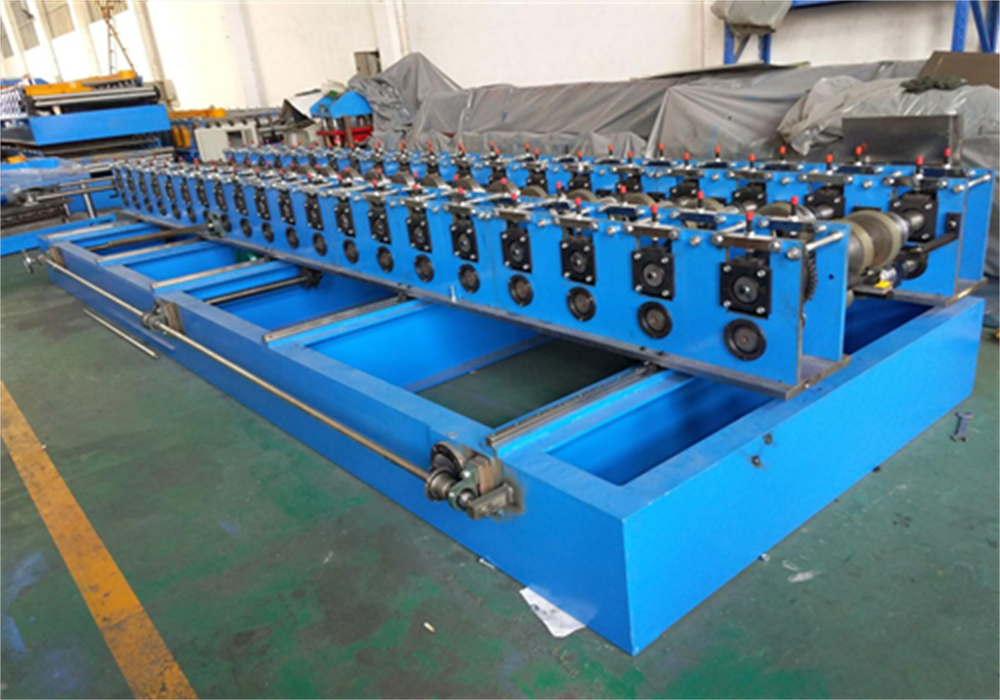

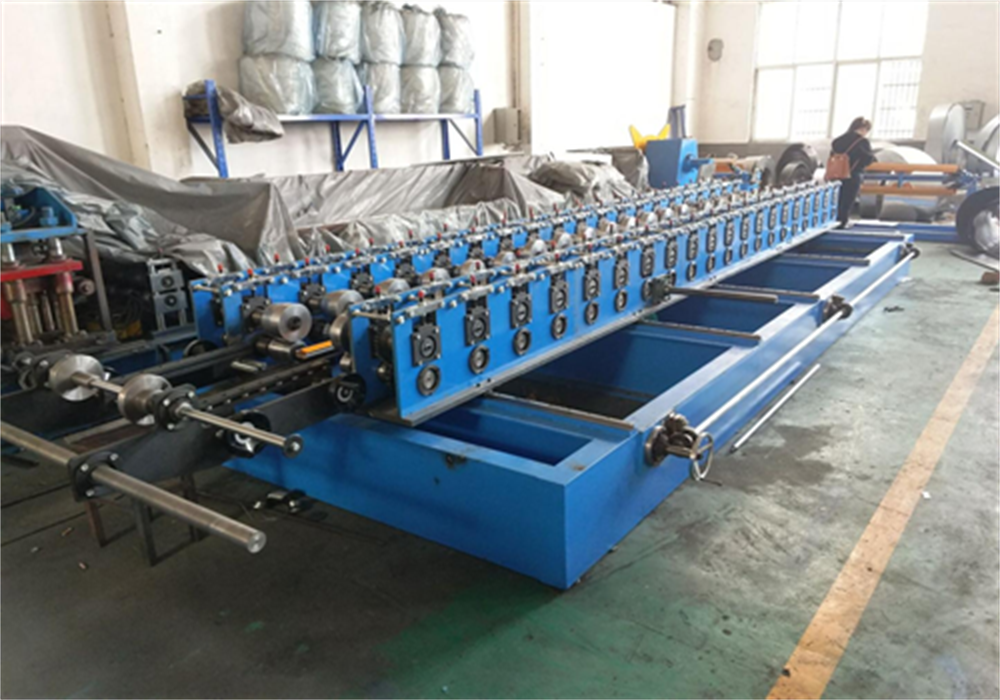

Main Roll forming machine |
|
|

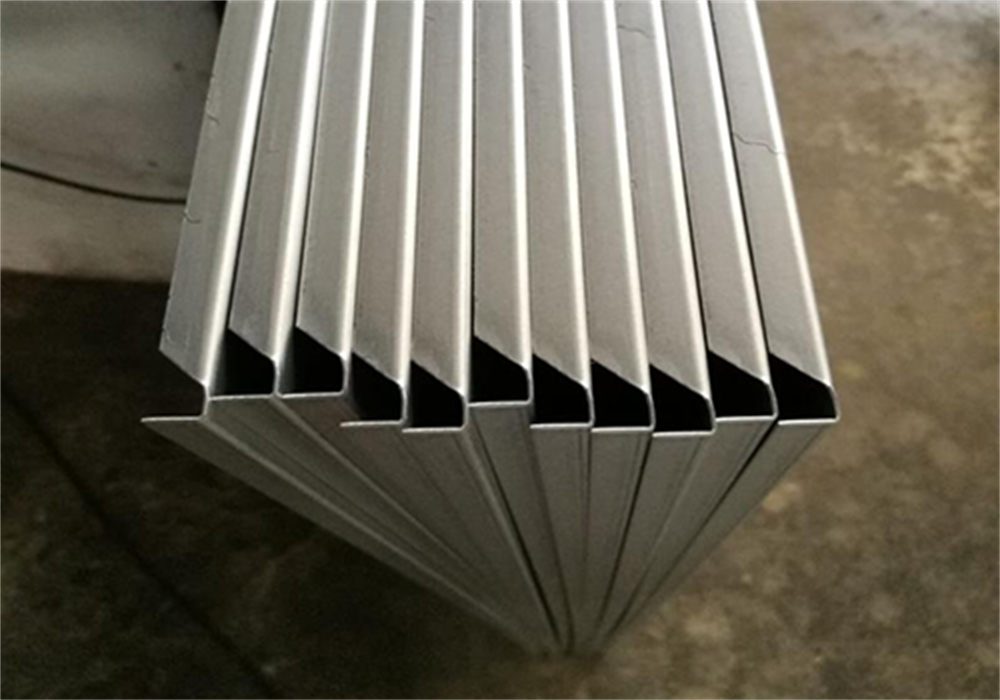

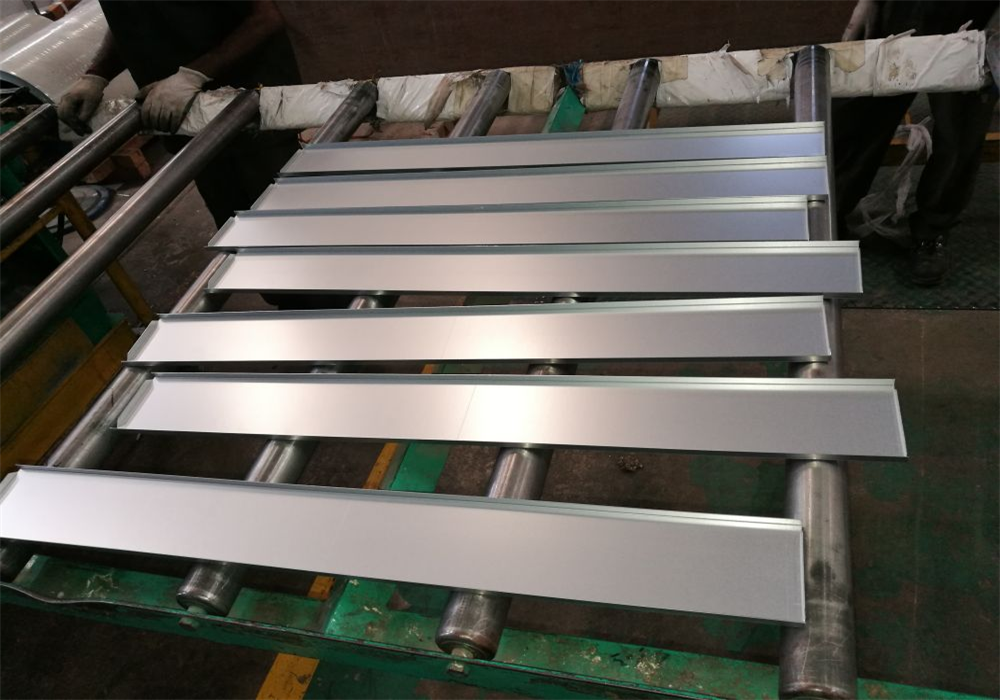

Sample picture |
|
|

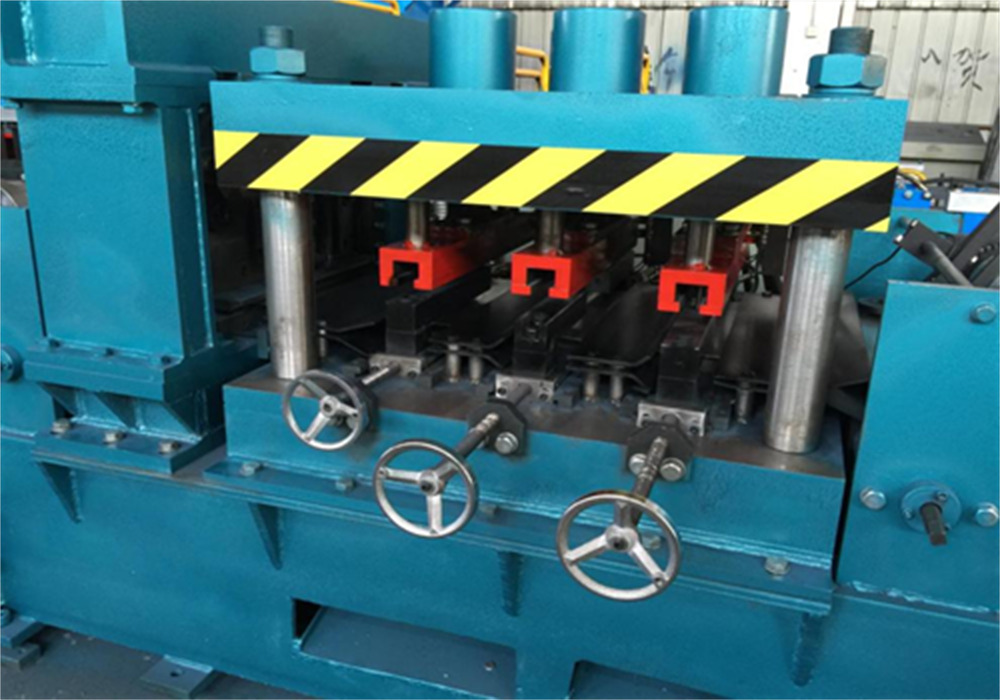

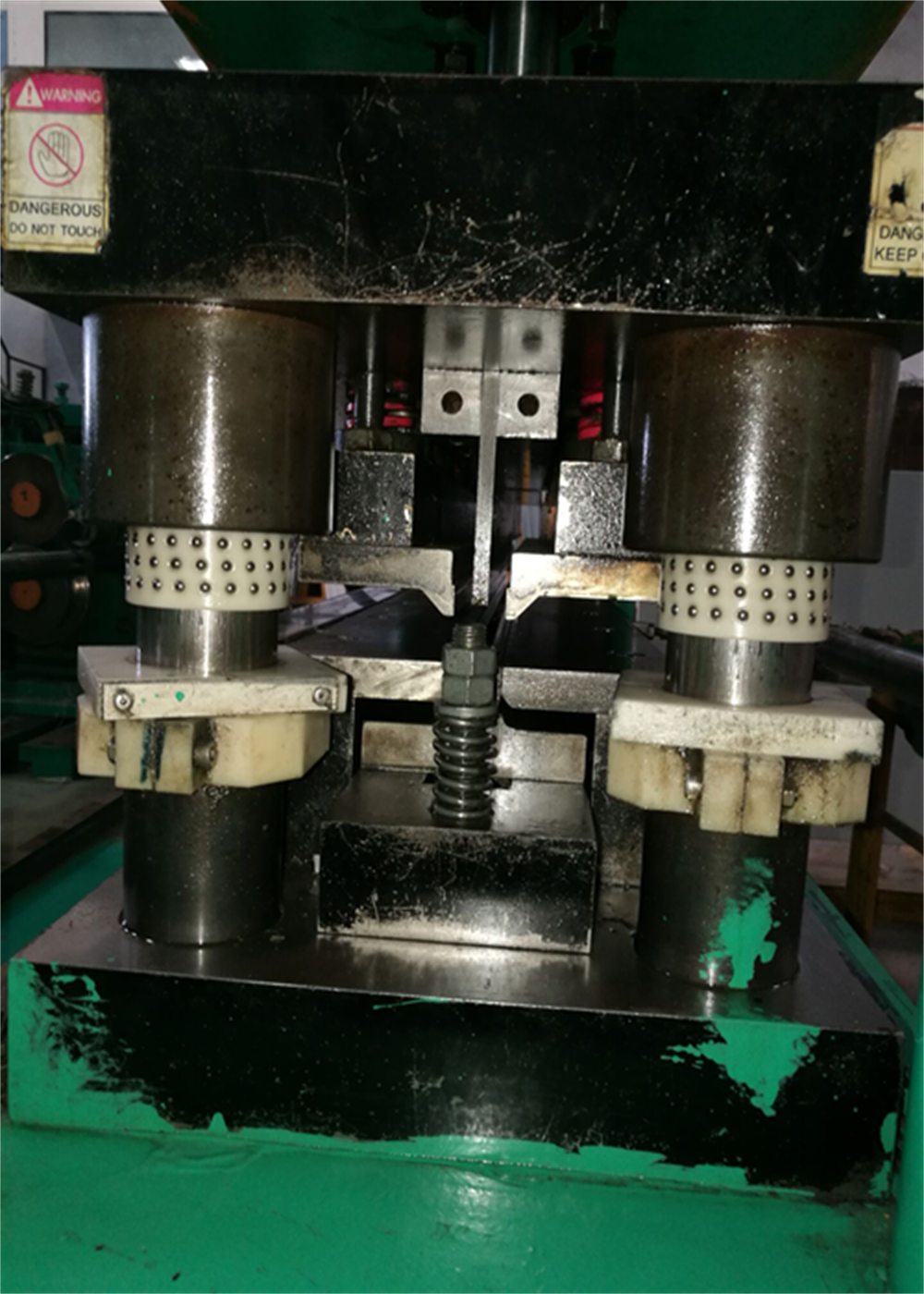

Cutting&bending combination mould |

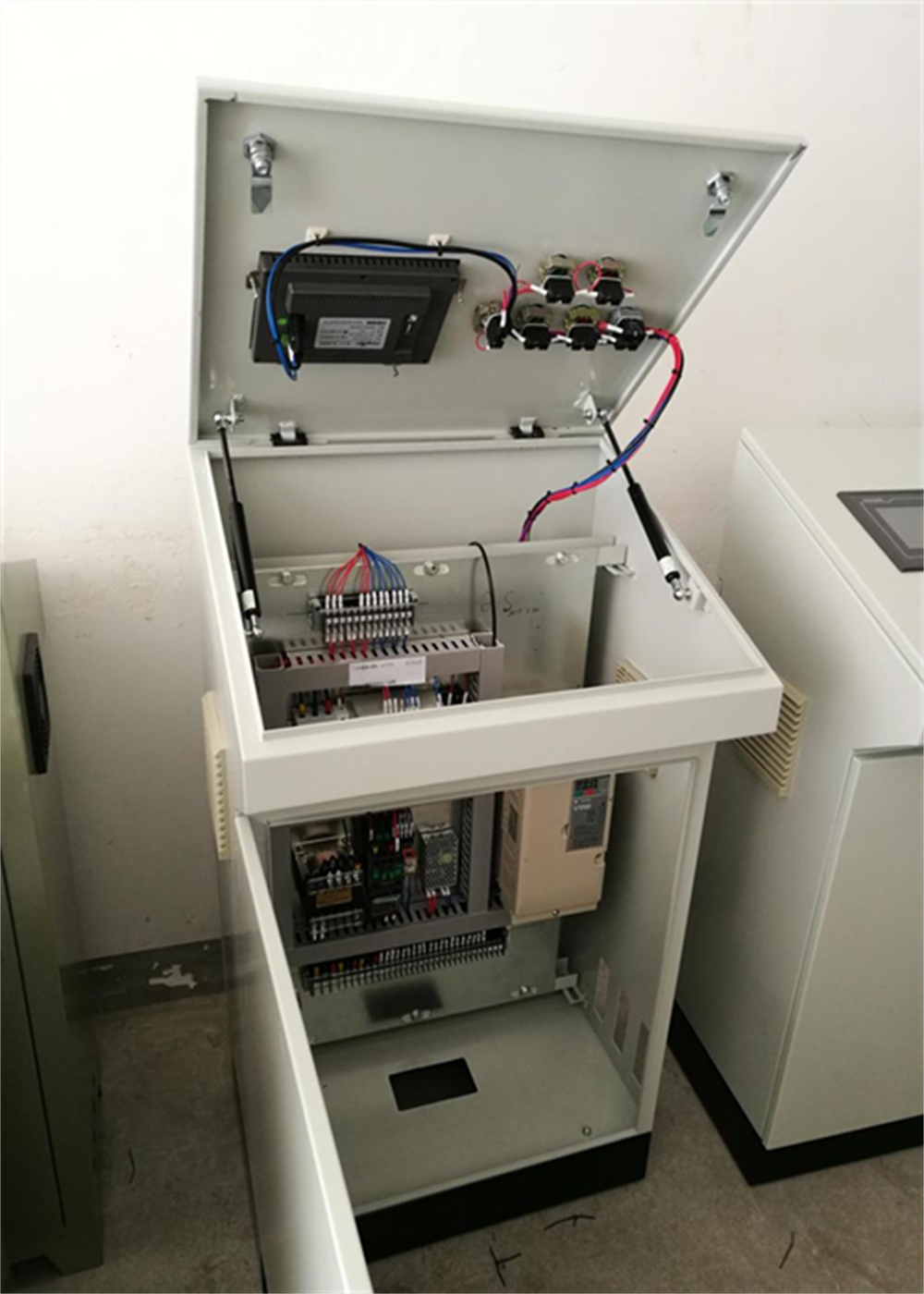

Electrical control cabinet |
|
|

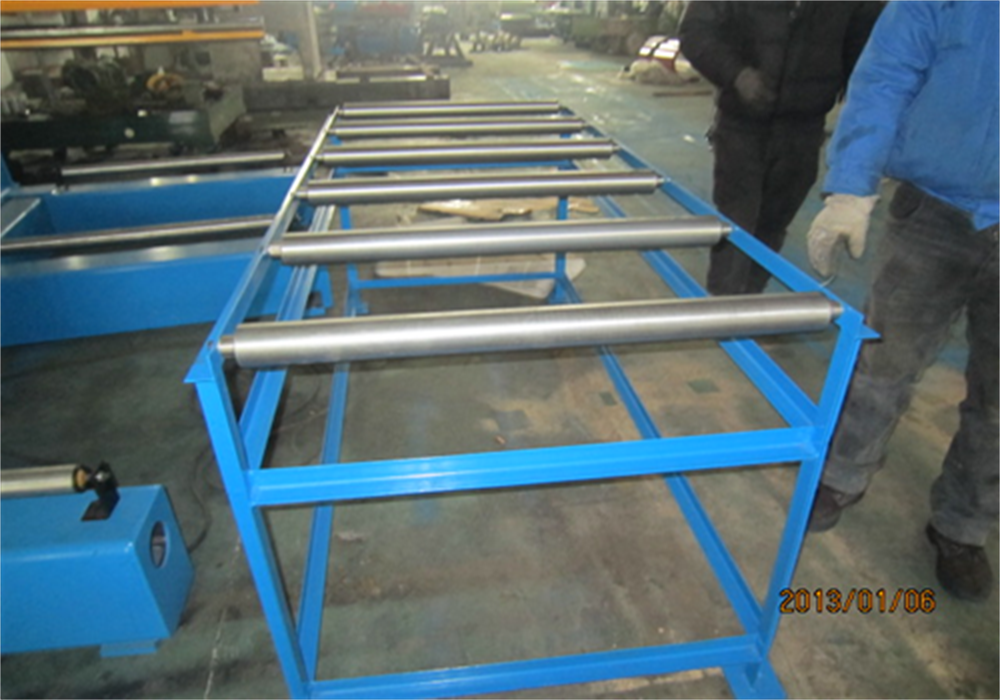

Outables |

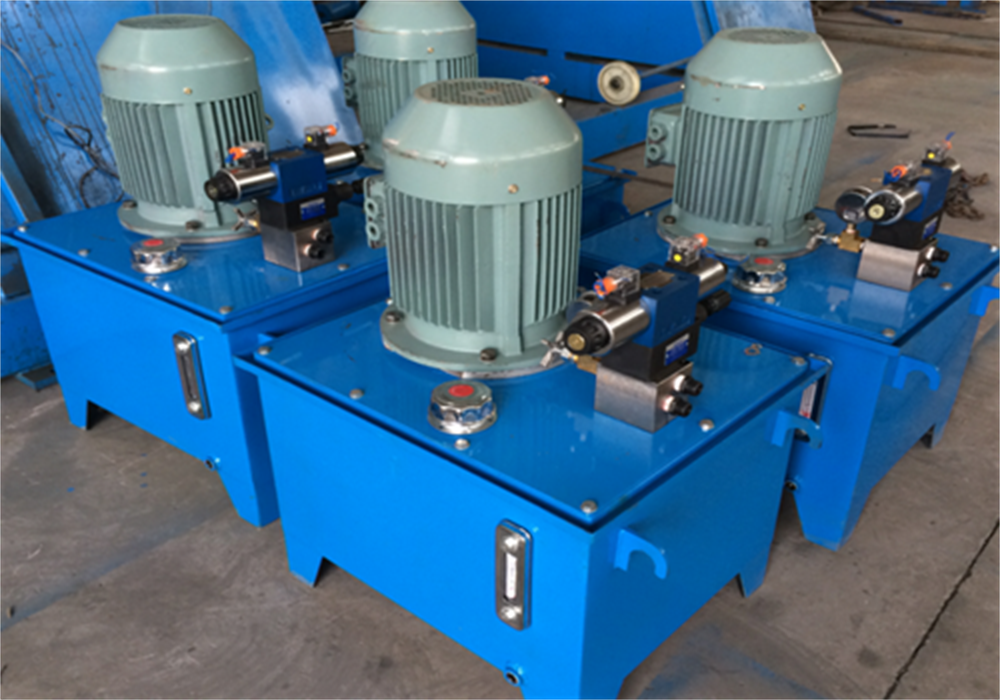

Hydraulic station picture |
![]() |
1.Technological process of the production line is concise, compact layout, advanced technology, put an end to produce defects, comprehensive energy consumption is low, simple operation and maintenance, low operating cost.
2.Production line adopts the standard electrical, instrumentation components and equipment components meet the needs of the buyers,Control system has the maintainability and expansibility; And ensure the advanced technology, reliable control, during normal operation can automatic complete all real-time detection and adjusting function, have interlocking function to prevent wrong operation, Do all the operation, monitoring on main operating platform .Display and handle the alarm.
